48V 12AH Lithium Battery

This battery is suitable for any electric motor from 250 to 750 watts on a 48-volt circuit, and with up to 80% capacity after 800 cycles, you can rely on the performance of the cells for years to come.

With its high-performance attributes, such as a zero negative memory effect and one of the highest power densities to weight ratios of the entire Li-ion battery range, you will experience ultimate power and endurance on your rides.

Safety is also a priority, with a built-in BMS monitoring and management chip preventing over-charge, over-discharge, over-heating, short-circuit, and temperature runaway.

Additionally, there is no import tax duty required for delivery to Australia, USA, UK, UAE, and all Western European countries, making this battery a further positive economical choice.

Enjoy the power and exceptional quality of our lithium battery and get the most out of your e-bike or electric scooter today!

48V 12AH Lithium Battery Key Features:

• Modern lithium-ion battery chemistry and technology.
• Extremely high energy density to weight ratio.
• Safe: Built-in BMS prevents over-charge, over-discharge, over-heating, short-circuit and temperature runaway.
• Environmentally responsible: No hazardous substances used in construction.
• Particularly suited for small electric vehicles: Including e-scooters & e-bikes.

48V 12AH Lithium Battery Specifications:

• Battery type: Li-ion electric bike battery.
• Cell type: 3.7V 3.0Ah 18650 cell.
• Cell arrangement: 13 series 4 parallel (13S4P).
• Nominal voltage: 48V.
• Rated capacity: 10Ah.
• Constant discharge current: 20A.
• Peak discharge current: 60A.
• Cell overcharge protection voltage: 4.2V/cell.
• Cell overdischarge protection voltage: 2.8V/cell.
• Charge voltage: 54.6V.
• Charge current: 2-5A.
• Charge cut off voltage: 54.6V.
• Discharge cut off voltage: 38V.
• Charging method: CC/CV.
• Life cycle: 800 cycles (80% life).
• Weight: Approximately 3.9kg.
• Battery case size: 390x110x76.6mm.
• Charge ambient temperature: 0 to +45 degrees C.
• Discharge ambient temperature: -20 to +60 degrees C.
• Storage temperature: -10 to +45 degrees C.
• BMS built in: 15A continuous discharge / 50A peak discharge (BMS can be customized on request).
• Application: 48V / 250W up to a maximum of 750W electric motor.

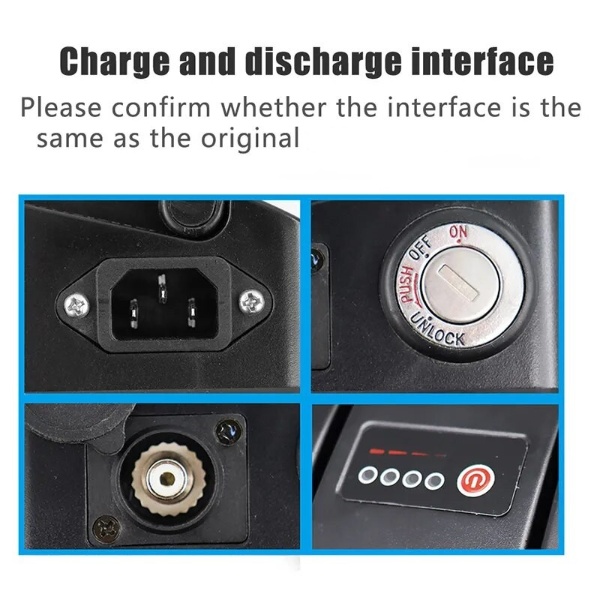

• Note: For battery charger purchase (we will automatically configure your battery to match your DC or 3 Pin charger connection choice. And send the correct wall plug / adaptor for the country of delivery).
